Description

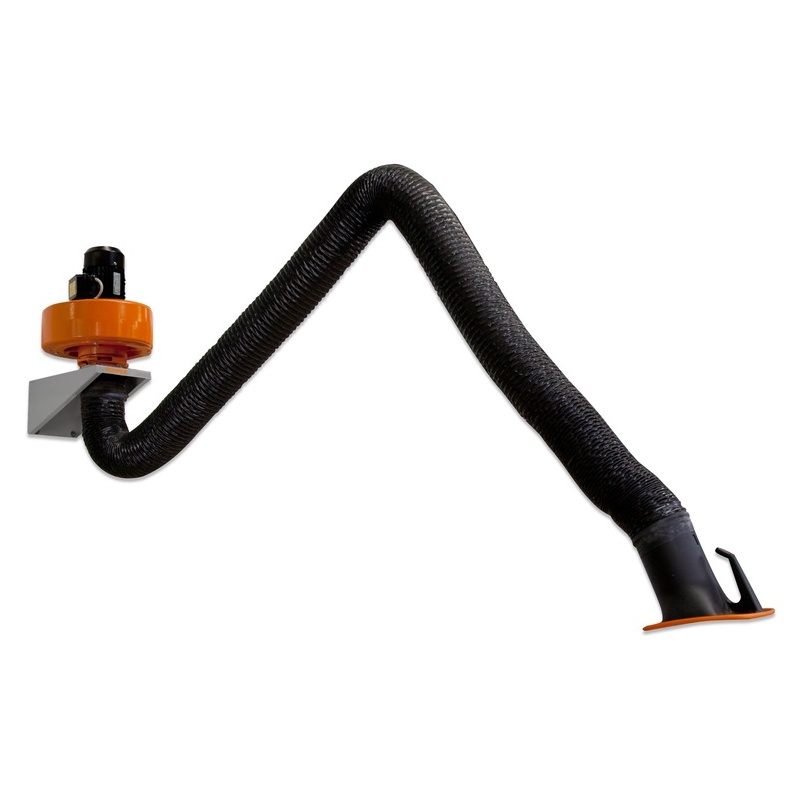

Kemper 79003201 Exhaust Set with 3 metre Flexible Exhaust Arm
The KEMPER exhaust set consists of a 3 m, long exhaust arm, a fan with wall bracket and a motor protection switch. For use where it is not absolutely necessary to filter the air.

Alternative lengths including 4 metre are available.

KEMPER exhaust arms are excellent for the extraction of welding smoke, gases, vapors, light dust and solvents.

The hose-type exhaust arm consists of an internal parallelogram support linkage with spring support and a polyester fabric reinforced hose with PVC coating with coiled steel wire bonded in. The 360° rotating evacuation hood with throttle valve can be swiveled in all directions.

The fans were designed especially for connection to KEMPER exhaust arms.The housing and impeller consist of non-sparking, cast silumin. The impeller is balanced statically and dynamically.This ensures perfectly smooth operation and minimum noise development. The housing has a powder finish. Including connection flange for Ø 160 mm exhaust pipe

Specification.

·        Length 3 m, Ø 150 mm

·        Fan: 2.000 m³/h, 0,75 kW

·        Power Supply 3 x 400V/50Hz
