Description

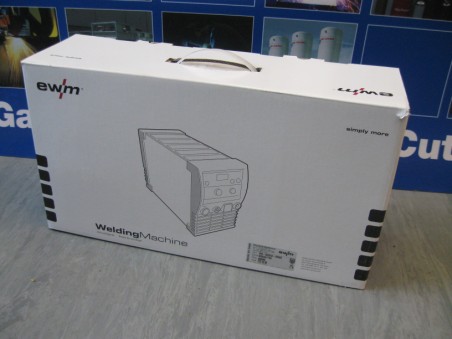

EWM Pico 162 Multivolt Inverter   All EWM machines come with a three year parts and labour warranty as standard.  Lightweight and powerful machine.  Optimised casing design.  Excellent ignition and welding properties, e.g. even with rutile cellulose electrodes (RC) .  100% construction site compatible for assembly work in the open air .  Unrestricted operation on generators.  Repair and production of machines, plant, construction and agricultural machines, rail cars, ships, boilers, closed containers, equipment construction, pipelines, etc.  Assembly and construction site usage, outdoor working, offshore

Features    Portable, gas cooled.  Innovative inverter technology for small, compact design and low weight .  Ergonomic, modern casing design with no corners or edges .  Intelligent casing design and robust, impact-resistant plastic guarantees functionality and safety even if dropped or knocked .  Safe operation on mains leads up to 50 m in length. Unrestricted operation on generators.  Protection classification IP23 (open-air operation), S - safety sign (boiler welding).  Latest inverter technology with excellent control dynamics for a stable arc for problem-free welding of critical electrodes, e.g. rutile/cellulose electrodes.  Reliable and safe thanks to the protected layout of the operating elements in a stable design and positioning of the electronics in a dust-free area.  Integrated temperature monitor for protection against overload  • Inverter welding machine, DC  • MMA and TIG Lift arc welding  • One-dial operation  • Multivolt (MV): automatic mains voltage adaptation (115 V/230 V)  • Portable, shoulder strap  • Arcforcing, Hot start, antistick  • 3 m mains supply lead with 16 A shock-proof plug  • Contents set: power source, aluminium- framed hard case, electrode holder, workpiece lead, hand shield for welding, chipping hammer, steel brush  • 100 % tested and free-welded  • Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

Mains voltage (tolerances) 1 x 230 V (-40 % - +15 %) 1 x 115 V (-15 % - +15 %) Mains fuses (slow-blow) [A] 1 x 16 1 x 25 Setting range for welding current [A] 10 - 150 10 - 110 Duty cycle 40 °C 150 A / 35 % 110 A / 35 % Duty cycle 40 °C 120 A / 60 % 90 A / 60 % Duty cycle 40 °C 100 A / 100 % 80 A / 100 %

Dimensions L x W x H [mm] 400 x 115 x 225     Weight [kg] 5,1
