Description

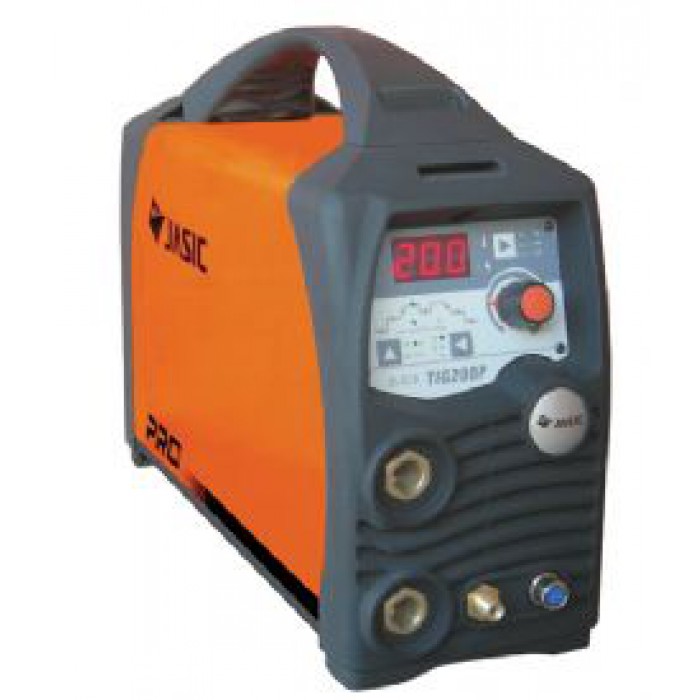

The Jasic Pro Tig 200 Pulse Tig is a dual voltage 110/230V DC Tig welder that is equally at home in a workshop or on-site. It features an auto-sensing facility to ensure the machine is using the correct voltage at all times. This model also includes pulsing which enables the operator to set a welding current and a second background current. The switching rate between the two currents is set by the operator. Useful function particularly when putting a root run in pipework.

It is a neat modern machine with a strong design look, advanced electronics, robust build and a fantastic warranty. It is supplied as a complete package which includes power source, torch, regulator and earth lead and clamp.

It is suitable for welding a wide range of ferrous metals including mild and stainless steel. It can also be used as an MMA Power Source for stick welding.

It utilises HF arc ignition for a non-contaminated start in Tig mode and incorporates a gas solenoid for automatic regulation of gas.

Key Features:

• IGBT Inverter technology - for the professional user.
• DC Tig / MMA operation.
• Hot start, lift arc, HF arc ignition, 2T/4T.
• Down slope & post flow.
• High frequency inverter, high efficiency.
• Compact size, lightweight and modern design.
• Easy start, stable and reliable arc.
• Auto-compensation for voltage fluctuation.
• Advanced single PCB construction.
• Generator friendly.
• High quality tactile rubber finish to mouldings and handle.
• 5 year parts and labour return to base warranty.

Package includes:

• Power source.
• Tig torch and adaptor.
• Gas regulator.
• Work return lead and clamp.
• Technical Data

  Input Voltage AC 230V 50/60 Hz AC 115V 50/60 Hz
  Input Power (kVA) MMA 8.2 TIG 6
  Current Range (A) MMA 10 - 180 MMA 10 - 100
  TIG 10 - 200 TIG 10 - 130
  Duty Cycle @ 40?C 200A @ 35% 130A @ 35%
  No-Load Voltage (V) MMA 60 TIG 65
  Efficiency (%) 85
  Power Factor 0.70
  Pulse Frequency (Hz) 0.5 - 200
  Protection/Ins IP21S/F
  Dimensions (mm) 365 x 135 x 277
  Weight (Kg) 6.12
